After seeing the Garagestar Delrin Miata door bushings, and hearing of their effectiveness for users, I figured I'd see if I could make a pair for my car.

I made one rough set just to see if they made a difference in how the car felt, and then I made another set with a little more attention to detail.

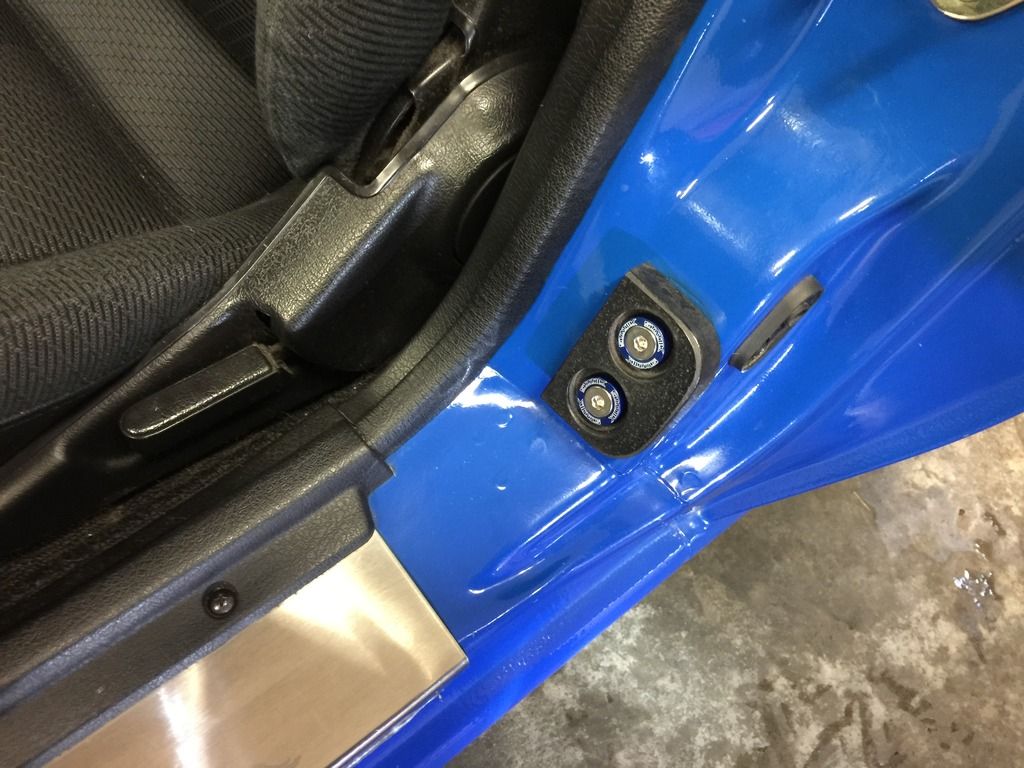

I used 5/8" UHMW plastic, ripped down to size on a table saw, cut to length on a chop saw, rounded on a belt sander and holes countersunk with a 15/16" Forstner bit. I then flame polished it (turned out more mottled than polished, I'd say, but it looks nice). A few simple anodized washers for a little visual pizzaz, and that's it!

I'm pleased with the results..... I've adjusted the steel cups so the doors close with a satisfying thud, and so that it takes a modest tug to open them (this can easily be adjusted to suit your preferences, no matter which bushings you use). I'd say the car is a tad quieter (due to rattle reduction), but I didn't expect these blocks to turn the car into a canyon carving Rolls Royce....

All in all, a fun, cheap project that was more about time and details than money!



[GreaseMonkey2000]

Looks like a pretty well executed diy project, congrats! :icon_cheers:



[handballallday]

hmm those look very nice. How much for a pair shipped? :winky:



[cason234]

Thanks for the complements! I don't have the time to make more of them, so I won't be selling them.... if you're interested, I'll take a picture of my hand drawn sketch and post it here, so you can make a set yourself! The anodized washers and allen head bolts are just fender washers from eBay.....

cheers



[cason234]

Here's my handsketched drawing for those door bushings:



[porkchop]

Interesting. Where do you find uhmw?

Sent from my Nexus 5 using Tapatalk



[aidandj]

Here is a solidworks drawing of door bushings too if you need more accurate measurements.

http://sadfab.com/opensource.html#doorbushings



[sjmarcy]

OR...just "Think Outside the Block"...truly



[GreaseMonkey2000]

OR...just "Think Outside the Block"...truly



[stng_96]

Looks great man, thanks for the dimensions. I had been planning on doing the same thing, you can order the delrin in sheets so thats what I did.

Thanks!



[kit-ster]

Great job and it looks really good too.


Sent from my iPad using Tapatalk



[Nike]

Thanks for the complements! I don't have the time to make more of them, so I won't be selling them.... if you're interested, I'll take a picture of my hand drawn sketch and post it here, so you can make a set yourself! The anodized washers and allen head bolts are just fender washers from eBay.....

cheers

With the bolts you got from ebay, did you have any thread pitch issue?

Thanks In Advance.



[zzapultimate]

Great job on this. I'll be adding this one to the list.



[cason234]

With the bolts you got from ebay, did you have any thread pitch issue?

Thanks In Advance.

(I missed this question..... apologies for delayed response!): no problem with thread pitch. I happened to have them laying around, and they worked perfectly!



[timemachine89]

Here is a solidworks drawing of door bushings too if you need more accurate measurements.

http://sadfab.com/opensource.html#doorbushings

#1 Reason why I love the Miata Community. Open sourced awesome-ness!



[Danny_Grist]

Great job they look great


Sent from my iPhone using Tapatalk
