[imput1234]

After owning the car for a little over a year now, I've finally got all the parts needed to turbo it, so decided to make a little build thread.

Little bit of a background, got the car last year after my rx8 got totaled. The miata was bone stock had about 55k miles on it

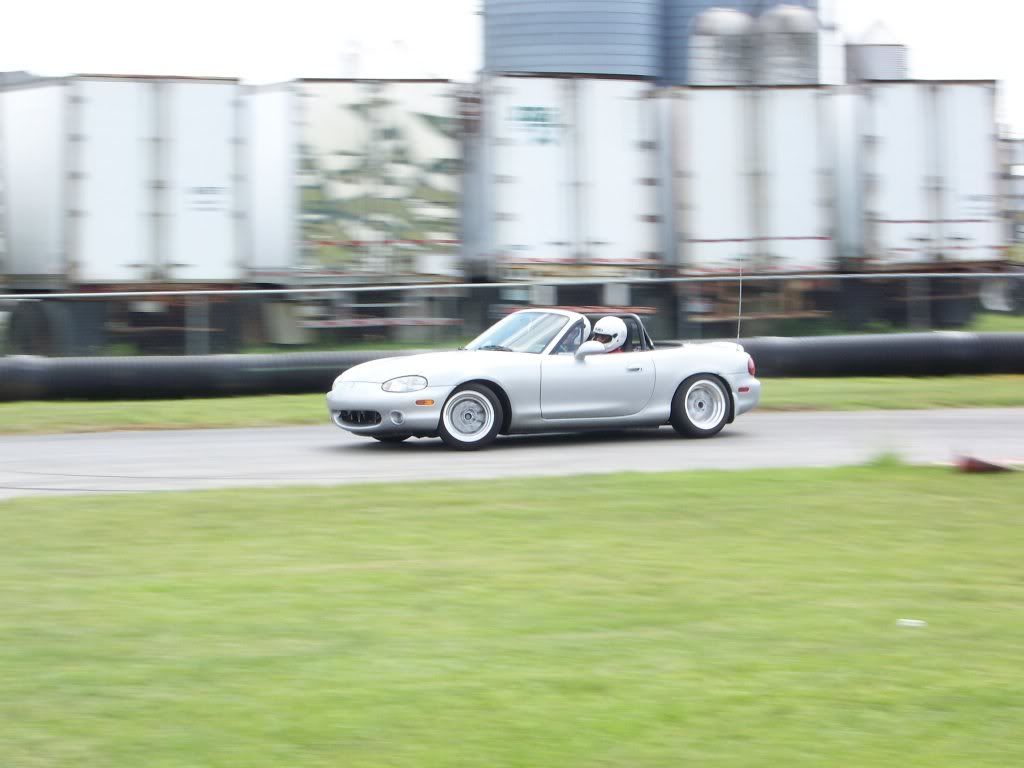

Got it on a sunday, I think, then ordered some BC coils from Chelsea @ Roadsterdrift, got a couple sets of XXR's, a harddog hardcore rollbar, a Bride Vios III, Nardi 330, upgraded the brakes; and pretty much left it like that for the rest of the year. Put all that in during the first week, then went to my first drift day in the miata that weekend.

I probably did about around 10 or so events last year, even got a small feature on Modified mag.

Shortly after that Mishimoto hooked me up with a radiator/shrowds/hoses some other random **** for super cheap, I also ordered some Level7tune knuckles from Chelsea, that are awesome, but took forever to get here.

Original plan was to go turbo in the beginning of this year, so I ended up buying a used AVO kit from a member on here, but since then the only parts that remain from the original kit is the manifold and the turbo. haha

decided to just keep it reliable, but since it was quiet as ****, got a racing beat header back, raceland header, also changed my seat to a sparco corsa, and new wheel momo 320, and did more events:

That brings us to today, Spec stage III + Flyin Miata 10lb flywheel are in. Adaptronic 420 EMS + Innovate LC1 are in.

Yesterday I cleaned the intake manifold out, installed Flyin Miata dual feed fuel rail & RC 440 injectors when I found out that I'm missing the rubber injector insulator, so called up Mazda and order that. Also deleted the EGR and the Charcoal canister while I was at it; Hopefully should be turboed and running by next week.

some pics of right now:



[Stanty]

Re: my turbo daily project

Very jealous that you could buy and fit so much in the first week of ownership. Looks great though. Got footage from the GoPro on the front fender?



[imput1234]

Re: my turbo daily project

Very jealous that you could buy and fit so much in the first week of ownership. Looks great though. Got footage from the GoPro on the front fender?

haha yeah the first week was pretty busy, but had to get ready for the track day that week:


a couple videos:



[imput1234]

Worked on the car for a little bit today

spliced up my mishimoto hose, so the gauge sensor could fit

removed the header, drained the radiator and removed it.

looks so empty haha

removed the pesant ass fitting that came with the kit, and installed some cool AN ones. Gonna be running -8AN SS line PTFE coated for the drain, -4AN SS line PTFE coated for the oil feed, and -6AN rubber pushlock hoses for the coolant.

some of the other stuff that's gonna be in soon

Also mocked up the turbo, **** sits soo low can't wait. Might be getting the manifold jet coated too, if they can do it fast enough, it looks mad ugly right now



[babyjesus]

arun!!!!!!!!!!!!!!!!! **** is gonna be sooo sick!!



[imput1234]

arun!!!!!!!!!!!!!!!!! **** is gonna be sooo sick!!

haha yeah dude, I cant wait!



[morr]

Awesome build so far! It's kinda like watching myself drift if I knew how (same yr/color nb and wheels) :lol: Subscribed for sure.



[imput1234]

Awesome build so far! It's kinda like watching myself drift if I knew how (same yr/color nb and wheels) :lol: Subscribed for sure.

hell yeah dude go out to a local event, and kill it, its super fun!

Don't really have too much to update, it was a good friends birthday so I left town for the day, but there is a dude in his town that does awesome thermal coating, so I dropped off the manifold there to get it coated, hopefully he should be done with that by the end of the week.

Other than that didn't really do a whole lot, drained and drilled the pan, I thought this was gonna be hard, but it actually turned out to be pretty simple. Worse part is when I was trying to move the AC line out of the way, I bent it a little too much, and it started spraying refigerent all over the place looked like snow haha.

Also took the manifold to my buddies fabrication shop, and cut the dildo looking EGR valve thingy, and welded it shut.

before:

after:

The turbo had some garbage ass gasket that looked like a frog chewed all over it, got a fresh SS one for APT turbo, looks so much better.



[imput1234]

Ahhh well this sucks, not sure what happened, but I tapped it, and then put the fitting in, after I got done, I left, came back a couple hours later, and noticed three small hairline cracks around it. I mean they are small as **** (thinner than your nail). Just put some JBweld on it for now, but might need to remove it and get it welded up. Not really sure why this happened, I'm guess maybe too much force? But I'm not rambo, and I just used one hand to tighten it.

I tired to take some before pics, but it was super hard to see. So I just took it after.

crack on the top left and on the right (where JB is):

and the last crack was on the bottom side:



[imput1234]

Got my injector seals in finally, so that's taken care of

Now just waiting for my manifold, and hopefully the pan isn't too messed up. I had a ton of the gold spaceship wrap, so I went a lil crazy with it on my intercooler haha

relocated the power steering lines, and mounted up the intercooler



[imput1234]

Just got the manifold back from the jet coating, they coated both the inside and the outside, looks so good, turbo time



[ryosuke]

boosted miata is win



[imput1234]

Pretty much got everything done, just waiting on a oil drain fitting. Amazon says it gets here tomorrow, so hopefully it'll all be done in a couple of days.

Got the oil feed line, and the coolant lines made, used grade 8 nuts and fastners on the manifold and turbo. Wish I went with SS lines for the coolant as well, the pushlock hoses are freaking ugly. also used the reflective tape on the brake lines and the heater hoses, still have about 15' left, so might do the entire firewall, haha.

Mounted and wired all the gauges except the boost gauge, broke the stupid white tube. Somehow I manged to loose a gauge pod, so I temporarily used a swivel pod I had laying around and mounted it on top of the steering column; it'll join the location of the other two gauges eventually.

Anyone know where I can find a replacement at? hopefully lowes has it.

Gauges are all STRI X Line:

I think I have too many points on the ground haha, might get some cool heat-shrink tube and make one big ass wire.



[imput1234]

Worked on the car all night, got everything else in and working, towed the car in the morning to a friends fab shop, to get the rest of the intercooler piping and exhaust made. Can't wait, almost there!

tow hook getting put to good use, haha



[imput1234]

Dropped by the shop today to see the progress

Intake done

hot side piping done, still needs to get powdercoated

intercooler/radiator shrouding, and exhaust are up next



[atlnb]

Very nice build dude! I'm loving that bride seat man! One of my favorite parts of the car. Subscribed!!



[imput1234]

Very nice build dude! I'm loving that bride seat man! One of my favorite parts of the car. Subscribed!!

haha nice, I miss it, sat so low, might get a maxis later on this year.



[reversecaoboy]

Why are NB's so dope. Loving the car man.



[atlnb]

haha nice, I miss it, sat so low, might get a maxis later on this year.

Haha yea it's hard to not stick with bride once you have one



[adamvanxxx]

So in one of the videos one of your rear quarters looks all fucked. Is this true?
